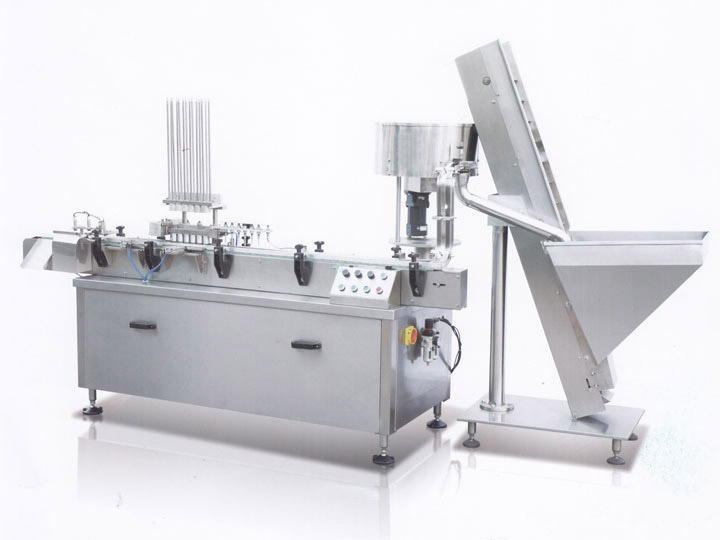

YS-ZSP-200B linear aluminum foil stuffed pad machine

技术参数

适用规格	Applicable specifications	20-40毫米	20-40mm
塞片头数	Plug head number	6头	6 pcs
生产能力	Production capacity	180-240只/分钟	100-240pcs/min
塞片误差	Plug pad error	正负0.5毫米	±0.5 mm
电源	Power supply	220V/50HZ	220V/50Hz
气源压力	Air source pressure	0.3—0.5MPa	0.3—0.5MPa
整机功率	Total power	1.5KW	1.5KW
机器重量	Weight	650Kg	650Kg
外形尺寸	Dimension	3500x750x1700	3500x750x1700

Brief introduction
This machine is suitable for pharmaceuticals, chemicals, pesticides, cosmetics, food packaging industry. The main uses for aluminum foil gasket filled. Replace the previous manual plug gasket

ZSP-the linear aluminum foil 200B plug pad machine in order to achieve the purpose of rationalization of production and design, mechanical transmission, Mitsubishi frequency control with pneumatic Flip vacuum suction gasket, disposable vertical stuffed. Plug pad automatic operation, easy to operate, simply cover poured into storage bins, aluminum foil gasket into the aluminum foil channel can, the other by the device itself. Fast, stable performance consistency.

Characteristic
1、Cover the storage, and automatically enhance feeding, automatic grounds cover
2、No cover stop anti-lid alarm shutdown
3、Anti-pads, no spacers detection removed
4、Count-packing, and the total output display
5、To prevent double spacer means
