技术参数：

适用规格	Applicable specifications	20-40毫米	20-40mm
塞片头数	Plug head number	4-6头	4-6pcs
生产能力	Production capacity	100-180只/分钟	100-180pcs/min
塞片误差	Plug pad error	正负0.5毫米	± 0.5mm
电源	Power supply	220V/50HZ	220V/50HZ
气源压力	Air source pressure	0.3-0.6MPa	0.3-0.6MPa
整机功率	Total power	1.5KW	1.5KW
机器重量	Weight	800Kg	800Kg
外形尺寸	Dimension	2200x1100x1500	2200x1100x1500

Brief introduction
This machine is suitable for the pharmaceuticals, chemicals, pesticides, cosmetics, food packaging industry. The main uses for aluminum foil gasket punching (aluminum foil  punching pad of paper punching ) filled. Replace the previous blanking gaskets and handmade the plug gasket traditional mode, reducing the production processes, to avoid recontamination appropriate more in line with GMP requirements.

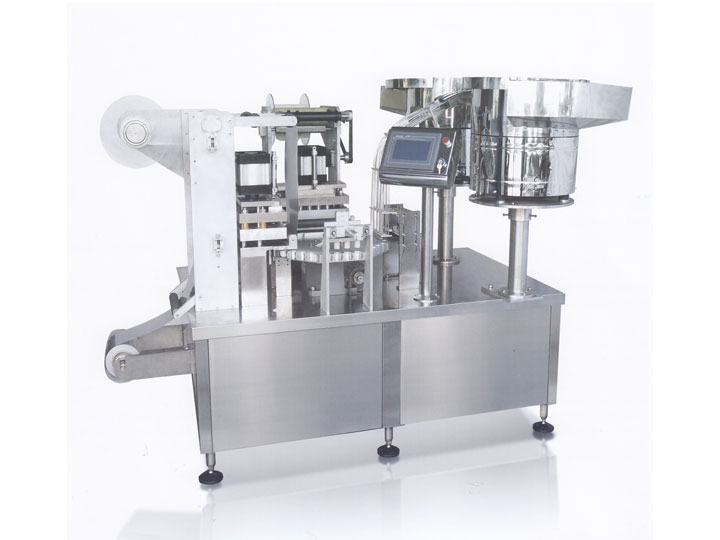

The YS-CXP-160 aluminum foil the blangking Plugs Pad Machine is the latest research results of the Company,by mechanical transmission ,Mitsubishi frequency control,stepper motor automatically sent volume(aluminum foil roll and roll)and winding (aluminum foil rolls and paper roll),stuffed with high-speed precision intermittent segmentation and cylinder positioning caps vertical blanking .The machine adopts the man-machine interface control,electromagnetic oscillations (or flow rotation) automatic grounds cover,the torque cylinder automatic punching the entire blanking plugs pad processes are automated operation, simple operation, simple operation,Fast stable performance consistency.

Characteristic

  1、Reduce the production processes, saving resources
  2、Avoid recontamination suitable clean area job
  3、Human-machine interface control, simple operation
  4、Cover the storage, automatic grounds cover
  5、No downtime, no aluminum foil alarm shutdown
  6、Cap mouth down detection removed
  7、Counts the total output display
